Automatic Reset Thermostats » TYPE SS1 / SS1-B Miniature
Automatic Reset Thermostats
| TYPE SS1 / SS1-B Miniature | |

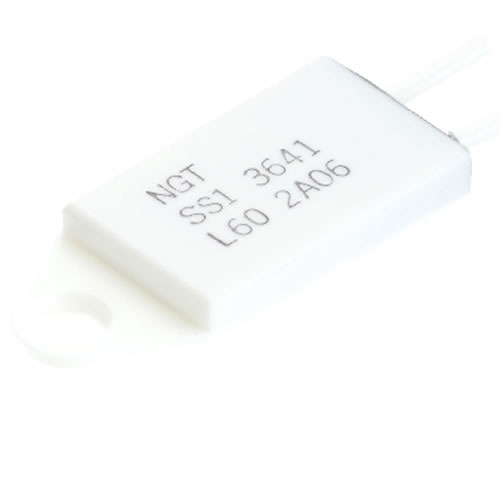

Type SS1 |
1/2" Bimetallic Disc Thermostat |
| Automatic Reset / Miniature Thermostat | |
| Moisture Resistant / Epoxy sealed | |
| Standard: UL-E43273, CSA-LR67166 | |
Type SS1-B |
1/2" Bimetallic Disc Thermostat |
| Automatic Reset / Miniature Thermostat | |
| Moisture Resistant / Epoxy sealed | |
| Standard: UL-E43273, CSA-LR67166 | |
| Item | Specifications |
| Basic Features | Automatic Reset, SPST Bimetallic Disc Thermostat |
| Operation | A: Contacts open on temperature rise B: Contacts close on temperature rise |
| Electrical Rate | 250 VAC/3A |
| Temperature Rating | Max Operating Temp 105°C (221°F) |
| Calibration Method | Hot Oven circulating System |
| Insulation Resistance | No less than 1,000 M(Omega) at DC 500V with Megger |
| Dielectric Strength | AC 1,500 Vfor 1 minute or AC 1,800 V for 1 second |

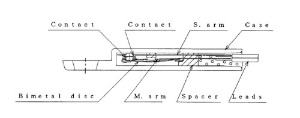

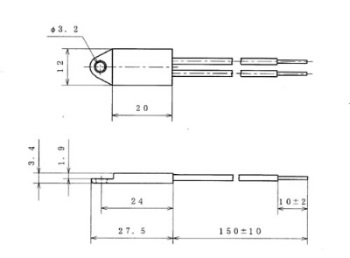

| Structure | Dimensions |
 |
 |
