General Specifications

Item Description
Basic Features 1/2" Disc Insulated Thermostat, SPST
Operation A: Open on Temperature rise
Temperature Range °C -15°C to 40°C 40°C to 120°C 120°C to 150°C
  °F 5°F to 104°F 104°F to 248°F 248°F to 302°F
Tolerance . 5°C (9°F) 3°C (5°F) 5°C (9°F)
Reseting Temperature Minimum 15°C (27°F) Lower than Operating Temperature
Calibration Method 1°C/Min. Air circulation furnace with a signal current load
Insulation Resistance More than 1,000 M at DC 500V with Megger
Dielectric Strength AC 1,500V for one minute AC 1,800 V for one second
Contact Resistance Less than 30 milliohms

Phenolic Thermostat: Temp, Up to 150°C (302°F)

Type No. Feature Electrical Rating Standard / Max. Temp. Setting
Type 11S / 11N

Type 05N / 05EP

Small Button
Height: 12mm (0.47")
Dia: 16mm (0.630")

Specifications
05N, 125VAC/250VAC
05EP, 30VDC
15A/10A
0.1A
Resistive UL / CSA / VDE
6K cycles
150 °C (302°F)

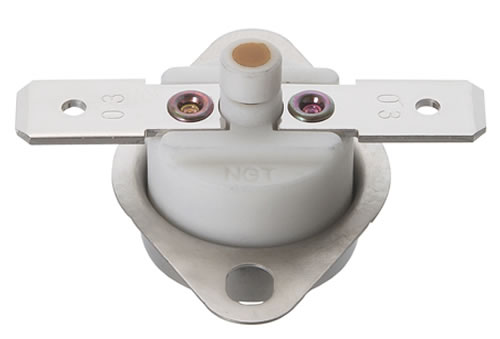

Type 03EP / 54N

Type 24N

Large Button
Height: 27.5mm (1.08")
Dia: 16mm (0.630")

Specifications
24N, 125VAC/250VAC 15A/10A Resistive UL / CSA / VDE
6K cycles
150 °C (302 °F)

Ceramic Thermostat: Temp. Up to 250 °C (482 °F)

Type No. Feature Electrical Rating Standard / Max Temp Setting
Type 15N

Type 15N

Specifications 125VAC/250VAC 15A/10A Resistive UL/CSA/VDE
6k cycles
250 °C(482 °F)
