Manual Reset Thermostats
| Type 05N / 05EP | |
Type 05N / 05EP |
1/2" Bimetallic Disc Thermostat |
| Manual Reset | |
| 05N: 125VAC / 15A, 250VAC / 10A 05EP: 125VAC / 0.1A, 30VDC / 0.1A |
|
| Standard: UL-E43273, CSA-LR67166 | |
| Item | Specifications |
| Basic Features | Manual Reset, SPST Bimetallic Disc Thermostat |
| Operation | A: Contacts open on temperature rise |
| Electrical Rate | Resistive: 125 VAC / 15A, 250VAC / 10A |
| Temperature Rating | Max Operating Temp 150°C (302°F) |
| Calibration Method | Hot Oven circulating System |
| Insulation Resistance | No less than 1,000 M(Omega) at DC 500V with Megger |
| Dielectric Strength | AC 1,500 Vfor 1 minute or AC 1,800 V for 1 second |

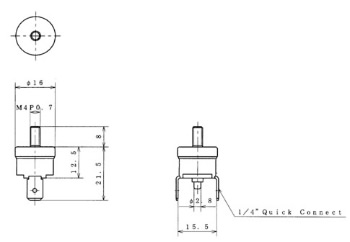

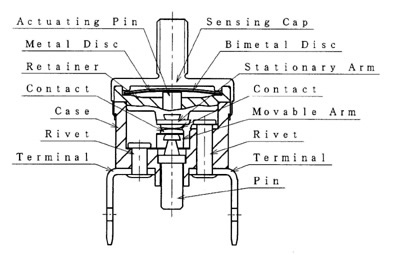

| Structure | Dimensions |
 |
 |
