Type MH4

Hover to enlarge image

Standard:
MITI; J-54, J-56

Item	Specifications
Basic Features	SPST Automatic reset
Operation	A: Contacts open on temperature rise
Electrical Rate	AC250V/8A AC250V/4A, DC13.5V/7A
Temperature Rating	Max Operating Temp 70°C (158°F)
Calibration Method	Hot Oven circulating System
Insulation Resistance	No less than 1,000 M(Omega) at DC 500V

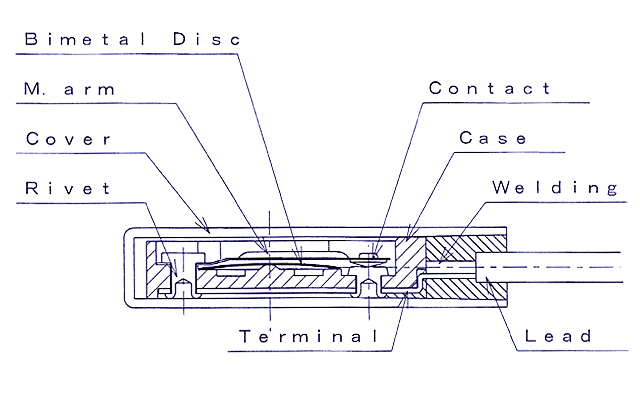

Structure	Dimensions

Type MH4, Thin Box Water Proof Type
